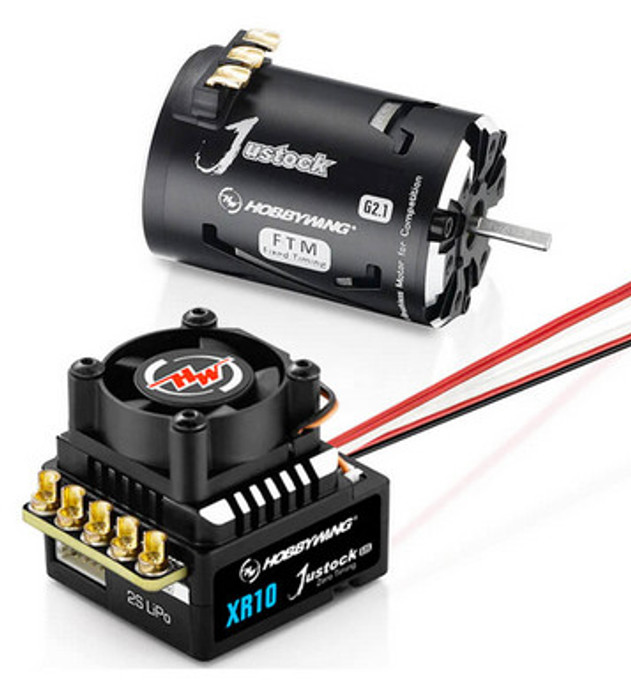

Hobbywing 38020371 COMBO-XR10-JS4-G3S-Black-G2.1 13.5T

XERUN XR10 JUSTOCK G3S ESC

FEATURES

• The built-in capacitor avoids the trouble of finding installation position for the external capacitor module, saves space and is convenient for layout
• The built-in reverse connection protection circuit prevents damaging ESC due to reverse connection of battery
• Multiple protection circuits, battery low-voltage cut-off protection, over temperature protection, fail safe (throttle signal loss protection) and motor lock-up protection
• Supports firmware upgrade of ESC (Multi-function LCD program box Pro or OTA Programmer need to be purchased)
• Supports various RPM limit values to meet the needs of different races. It can be set directly by the program box pro or OTA programmer

SPECIFICATIONS

Scale: 1/10 & 1/12
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless/Sensored
Waterproof: No
Motor Limit: >10.5
Cont./Peak Current: 60A/380A
Input Voltage: 2S Lipo Only
BEC Output: Switch Mode: 6.0v/7.4V @4A
Input Wires: Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires: Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: No
Fan Size: 25 x 25 x 10mm
Voltage Range: 5-7.4V
LCD Program Box: G2/PRO Supported
OTA Module: WiFi Supported
Size: 40.9 x 33.9 x 32.1mm
Weight: 75.4g (inc Wires)

HobbyWing Justock G2.1

FEATURES

• Heat-resistant magnet and aluminium case
• High precision balanced rotor
• Applicable to 1/10th, 1/12th on-road and off-road vehicles
• Perfectly matched with the XR10-Justock G3S ESC
• Complies with IFMAR, and ROAR specifications

SPECIFICATIONS

Scale: 1/10 & 1/12
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Timing: Fixed
KV: 3200KV
LiPo's: 2-3S
No-Load Current: 4A
Diameter / Length: 35.9mm (1.41") 52.5mm (2.07")
Shaft Diameter 3.17mm (0.125")
Bearing Size (Front/Rear): 9.525*3.175*3.967mm
Poles: 2
Weight: 175g
Applications: Stock/Sport Class 1/10th Buggy, Truck, On-Road, Drift Class
